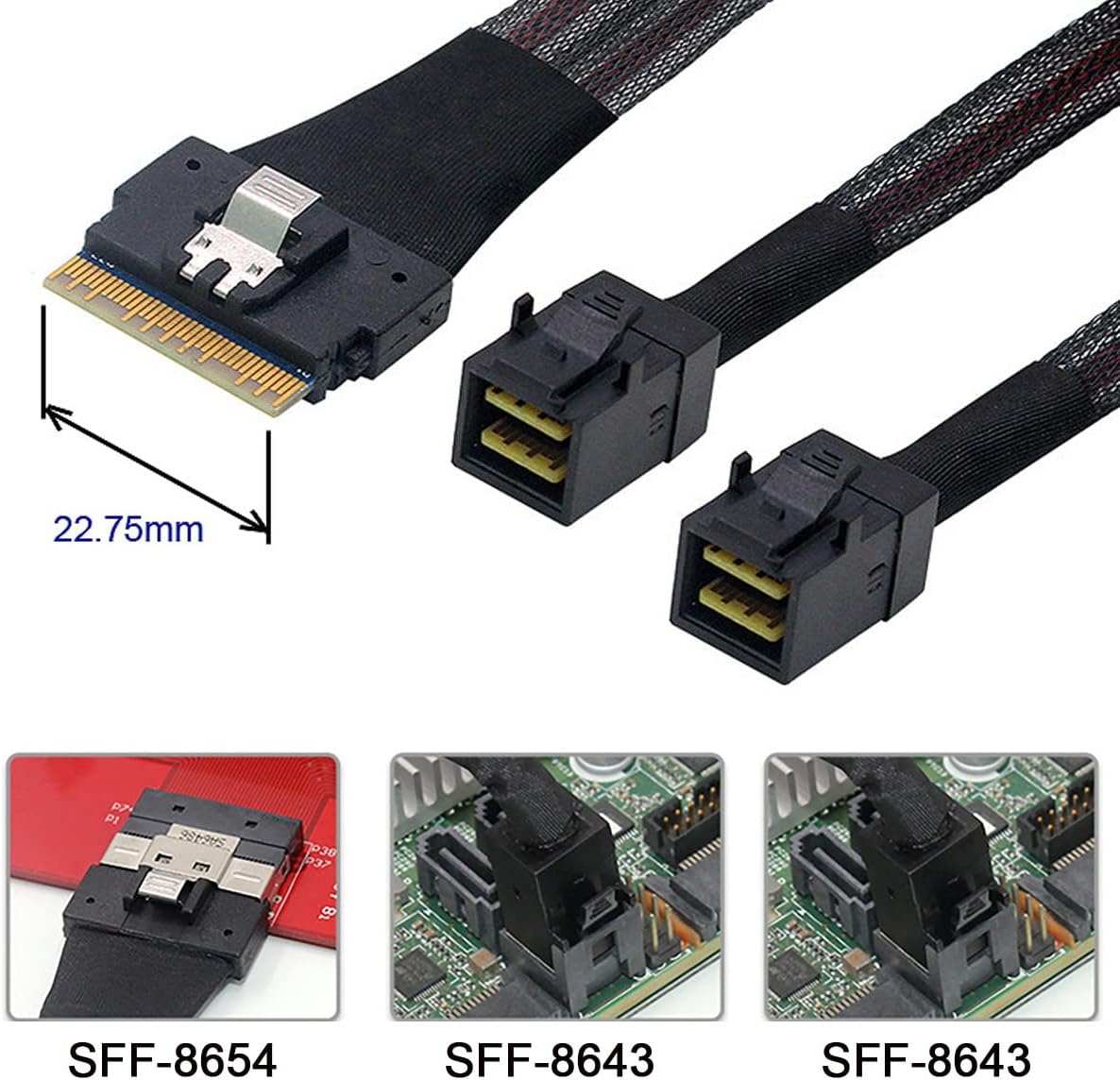

Detachable Bifurcation Virtual Raid PCI-E Ultraport Slimline SAS Slim 4.0 SFF-8654 8i 74pin to Dual SFF-8643 4i Mini SAS HD Cable PCI-Express

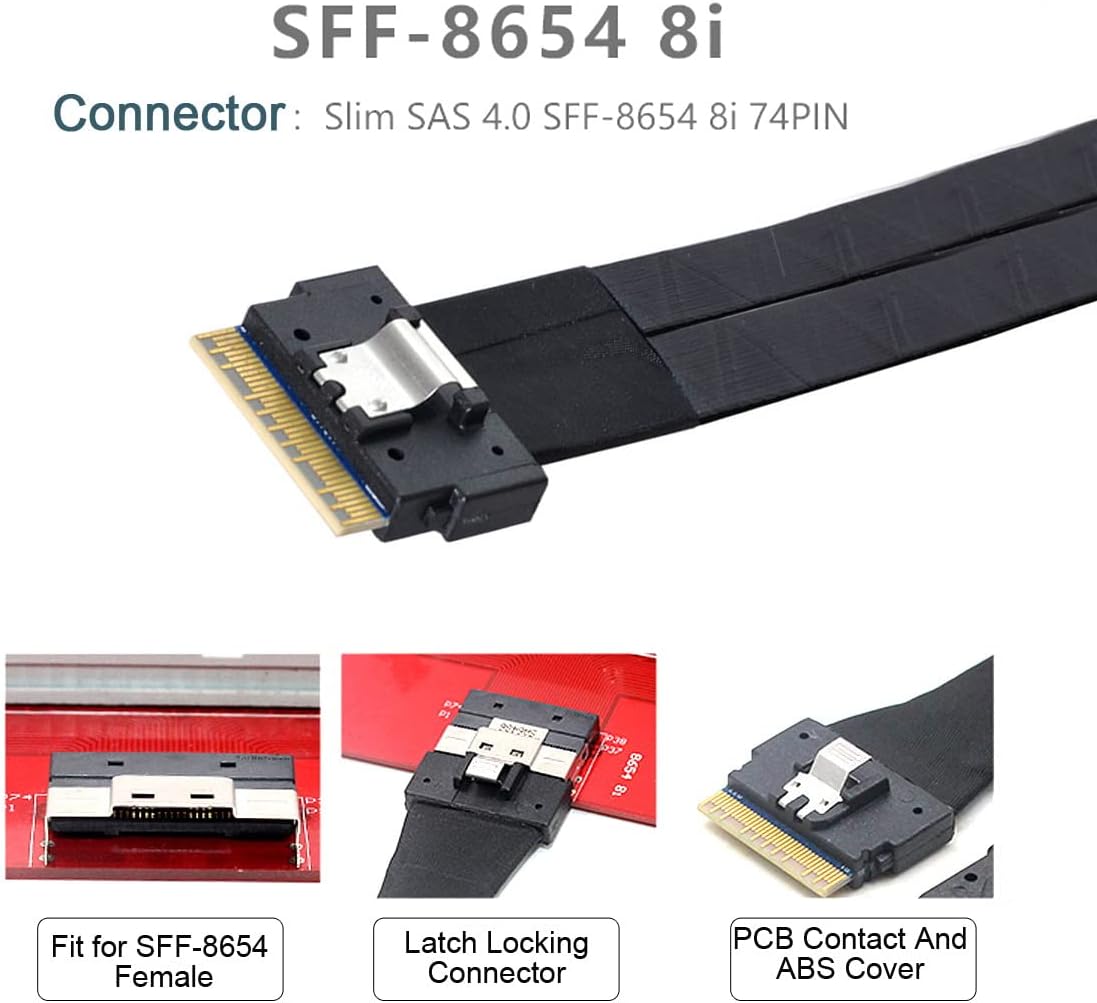

PCI-E Ultraport Slimline SAS Slim 4.0 SFF-8654 8i 74pin to Dual SFF-8643 4i Mini SAS HD Cable PCI-ExpressThis cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74pin connector to a controller with SFF-8643 connector.Ultraport Slimline 8i 74Pos Cable AssemblyLength: 50cmConnector 1: Slimline SFF-8654 8i 74pinConnector 2: Dual SFF-8643 Mini SAS HDApplications for Servers,Data Storage,WorkstationMeet PCIe Gen3/4 and SAS4.0 specification Features and Benefits:1.Smaller size connector and cable saves device space2.Provide four channels signal transmission as per industry standard3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification

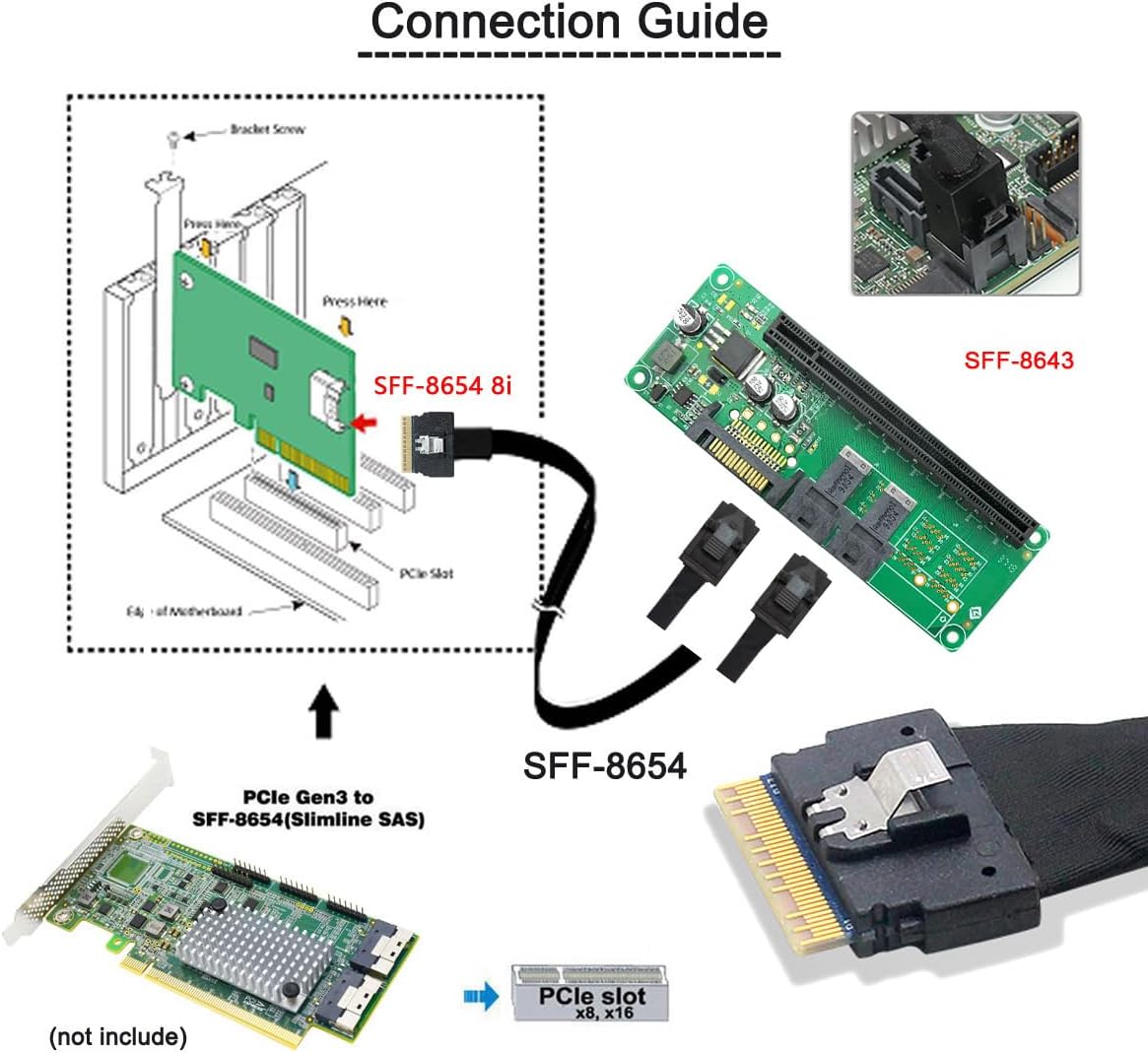

• 1) This cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74pin connector to a controller with SFF-8643 connector.Ultraport Slimline 8i 74Pos Cable Assembly
• 2) It transmits PCI Express 4.0 signals using the PCIE protocol; Support PCIE 4.0 data transmission, Data transfer rate up to 64Gbps, Support connecting GPU graphics card, SSD, expansion card, etc., backward compatible with PCIE 3.0.
• 3) It can be connected e.g. one SSD or eGPU Graphics Card by using an optional cable. Suitable for small hosts, desktops, laptops, etc. to convert PCIE sockets to SFF-8654 8X sockets, with fixing holes for fixing.
• 4) High-speed data transfer : The adapter cable is designed for use with ssd that use SFF-8654 8x connectors, allowing for fast and reliable data transfer at speeds of up to 64Gbps.
• 5) Only supports motherboards with detachable PCI-E channels; Control the operation of four disks based on the motherboard PCIE channel,The motherboard without PCIE signal split can only recognize one disk.
